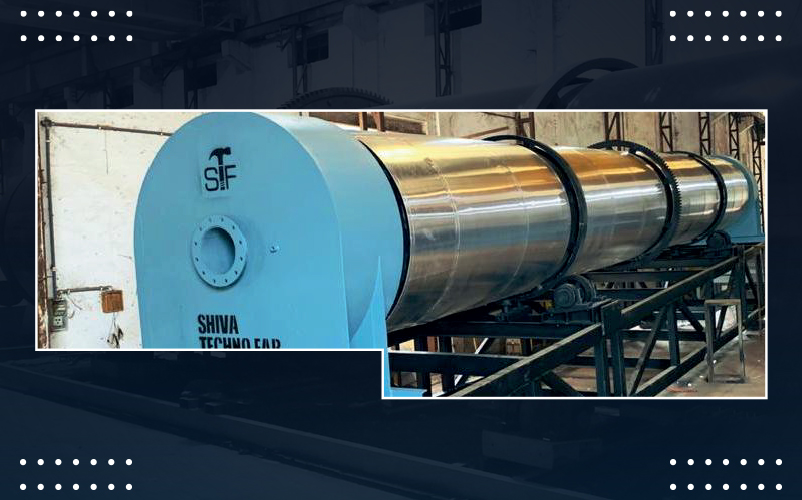

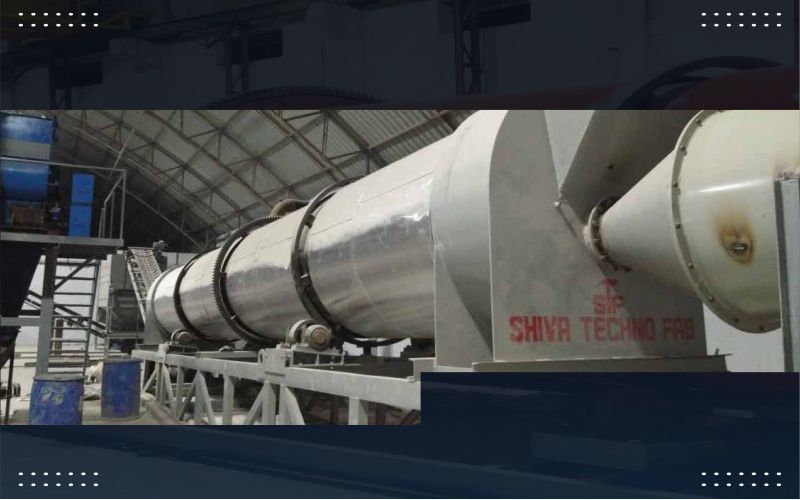

SAND DRYER
SAND DRYER :
Shiva Technofab Is Well Known Brand Of Manufacturing Best Quality Industrial Dryer Since 7 Years And Our Dryer Is Specially Design By Customer’s Requirement. Our Dryer Is Mostly Use In Various Industrial And Construction Categories. The First Step In The Processing Of Sand, Gravel And Aggregates After Mining Is A Washing And Classification Process. The Material May Be Screened And Stored But At Some Point Moisture Content Needs To Be Reduced To Meet A Specification Required For Sale Or Further Processing. Operating A Sand Dryer To Dry Your Mineral Product Is Frequently The Greatest Operating Expense In Your Process And Therefore With Proper Planning Can Be Your Greatest Cost-saving Opportunity.sand Dryer Are Used For Dryer All Kinds Of Sand Such As River Sand, Yellow Sand, Silica Sand, Quartz Sand, Garnet Sand, Slag Sand Etc
CONSTRUCTION OF SAND DRYER :

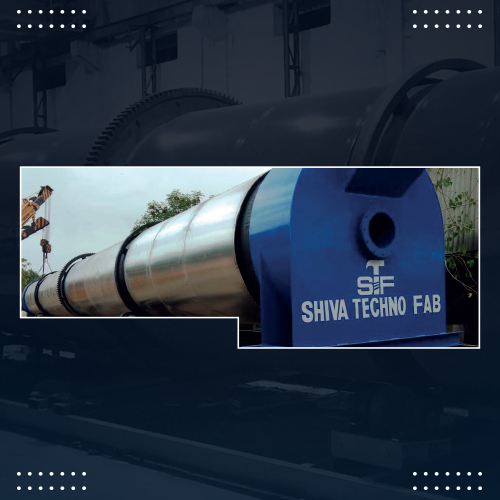

Rotary Dryer Mainly Consist Of Shell (Drum), Inlet Hood, Outlet Hood, Girth Gear, Riding/Tire Ring, Pinion, Trunnion Wheel, Thrust Roller, Transmission Assembly, Burner/Hot Air Generator, Induced Draft Fan, Raw Product Inlet Hopper, Product Discharge, Flights, Air Seals, RAV, Cyclone Separator, Aluminum And Cerawool Claddings.
SAND DRYER WORKFLOW :

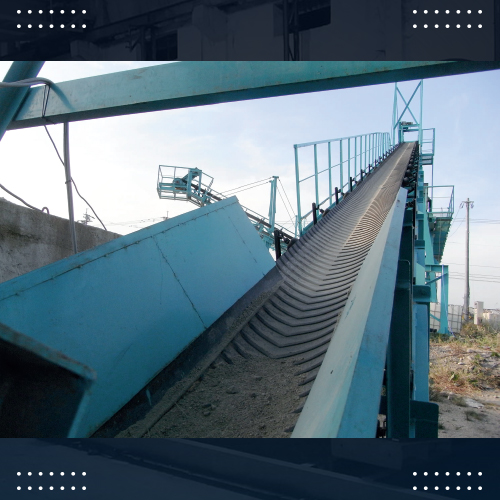

Belt Conveyor Or Bucket Elevator Transports The Wet Sand From The Feeding Hopper To The Sand Dryer. From The Same Directionhot Air Furnace/burner Supplies The Hot Air Into Sand Dryer.inside The Sand Dryer There Are Many Flights, And These Flights Mix The Wet Sand And Hot Air Sufficiently. The Humidity In The Wet Sand Is Heated And Evaporated Into Water Vapour.at The End Of The Sand Dryer, There Is One High Induced Draft Fan Which Remove The Water Vapour From Sand Dryer To The Stack/chimney.
During The Sand Dryer Process, There Is Some Dust Mixed With The Water Vapour, So We Provide Cyclone Separator To Remove The Dust From Water Vapour And Falls Down.at The Outlet Of The Dryer We Provides Rav For Easy Extraction For Final Product. Finally We Can Use One Belt Conveyor Or Bucket Elevator To Send The Dry Sand Into Silo Or Packages
SAND USES IN INDUSTRIES :
This Sandsare Used For Road Construction, And In The Production Of Construction Materials Like Concrete Blocks, Bricks, And Pipes, Making Tile Adhesive, Tile Grout, Ready Mix Plaster, Dry Mix Mortar,used To Make Glass As Foundry Sand And As Abrasive Sand And Many More.
SAND DRYER PRODUCT
